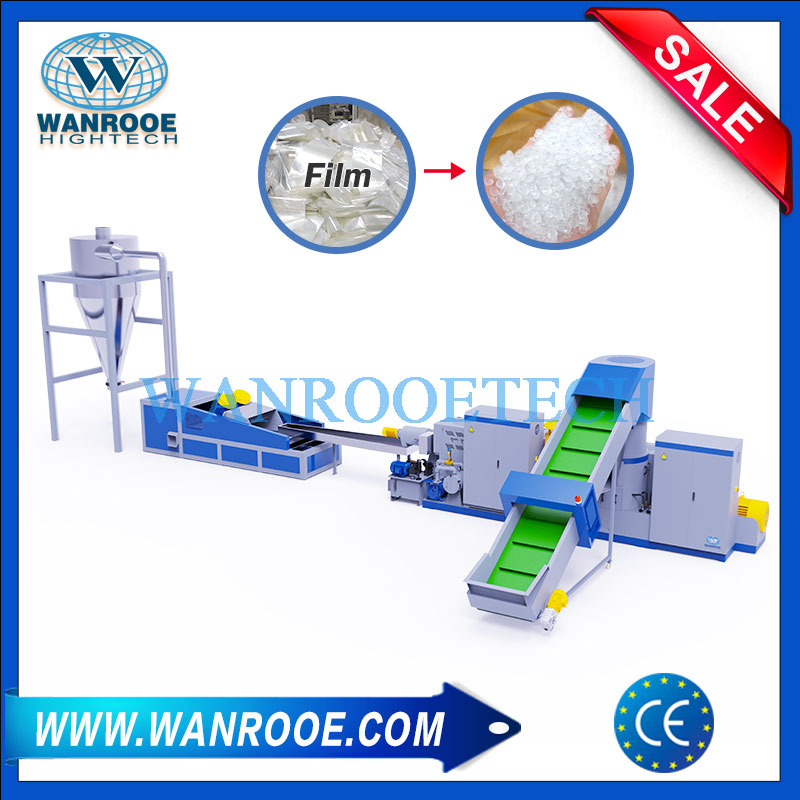

PET CPP Laminated Film Plastic Wrap Granulating Machine

Features:
1. Allow free assembling of the screw component, based on raw material type.
2. Using a suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with a specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.

  • Product Description
  • Technical Parameters
  • Video

PET CPP Laminated Film Plastic Wrap Granulating Machine Application:
PET CPP laminated film plastic wrap granulating machine is one stage plastic regenerative pelletizer, which is suitable for many kinds of plastic waste materials recycling and making pellets, such as PP, HDPE, LDPE, LLDPE, BOPP, CPP, PET,  Laminated Film and clean woven/nonwoven bag materials, etc. The film can be pressed in the compressor and then be pelletized.

plastic wrap granulating machine, laminated film granulator, pet film granulator, cpp film granulator, plastic film granulator

PET CPP Laminated Film Plastic Wrap Granulating Machine Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →Degassing single screw extruder→Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

PET CPP Laminated Film Plastic Wrap Granulating Machine Components:

plastic wrap granulating machine, laminated film granulator, pet film granulator, cpp film granulator, plastic film granulator

Detailed description of each item:
1. Conveyor: convey PP PE film or flakes into the compactor.
2. PE film Agglomerator /Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable.
3. Extruding system: plasticizing material and exhausting gas.
4. High speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5. water ring pelletizing machine: cutting pellets in water.
6. Water tank: cooling pellets.
7. Dewater machine: make pellets dry.
8. Vibration sieve: remove bad pellet and keep good pellet.
9. Air Blower: convey good pellets into the silo.
10. Storage silo: keep pellet.

PET CPP Laminated Film Plastic Wrap Granulating Machine Features:
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with a specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape.

Leave a Reply

Your email address will not be published. Required fields are marked *

Model Screw Dia(mm) L/D Capacity(kg/h)
PNHS-85 85 25-36 120-180
PNHS-100 100 25-36 200-250
PNHS-120 120 25-33 400-500
PNHS-160 160 25-33 450-700
PNHS-180 180 25-33 500-1000
