PET Bottle Washing Line Plastic Bottle Recycling Machine

The PET bottle recycling plant takes dirty bottles and transforms them into clean PET flakes. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 300kg/h to 3000kg/h. The line main purpose is to intend to get the clean flakes from the dirty even mixture bottles or bottles slice during dealing with the whole washing line. And also get a clean PP/PE collection, labels and paper clips, etc.

  • Product Description
  • Technical Parameters
  • Video

PET Bottle Washing Line Plastic Bottle Recycling Machine Application Areas:
PET bottle washing line is mainly used for recycling the bottles such as mineral water bottles, beverage bottles, oil bottles, PET preforms, etc. And the clean PET flakes will get at the end. It has crushing, washing and drying functions.

WANROOETECH’s PET washing line is the ideal solution for processing dirty PET bottle bales into “hot washed” PET flakes. Using our standard series of high-tech recycling machinery, the PET flakes produced are not only clean, but contaminant-free making them perfect for use in producing polyester staple fiber or further processing into plastic granules via pelletizing.

PET Recycling Line, PET Flakes Washing Line, PET Bottle Washing Machine, PET Washing Machine

PET Bottle Washing Line Plastic Bottle Recycling Machine Description:
The PET bottle recycling plant takes dirty bottles and transforms them into clean PET flakes. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 300kg/h to 3000kg/h. The line’s main purpose is to intend to get clean flakes from the dirty even mixture bottles or bottles slice during dealing with the whole washing line. And also get a clean PP/PE collection, labels and paper clips, etc.
The device is divided into unpacking, washing, sorting, detecting metal, crushing, floating washing, hot washing, rubbing, rinsing, dehydration, drying and packaging process steps.

PET Bottle Washing Line Plastic Bottle Recycling Machine

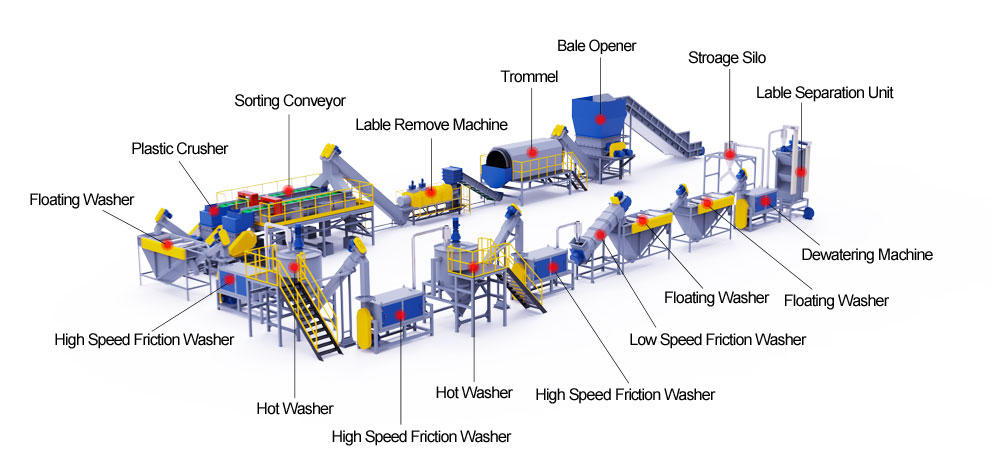

PET Bottle Washing Line Plastic Bottle Recycling Machine Process Flow:
Our turnkey PET bottle washing line consists of a series of plastic recycling machines connected using various types of conveyor systems.

    • Debaler Machine: The first step in our plastic bottle washing line is to break the compacted bales of PET bottles into a free-flowing stream. Once the bales are “busted”, the bottles can move freely onto the next machine.
    • Trommel: An optional piece of equipment, the trommel is a slowing rotating tunnel lined with small holes. The holes are slightly smaller than the PET bottles so small pieces of contamination (such as glass, metals, rocks/dirt, paper, etc…) can fall through while the PET bottles move onto the next machine.
    • Plastic Granulator: Sometimes referred to as a plastic crusher, our plastic granulator machine cuts the PET bottles into small flakes between 10-15mm in size. With water constantly spraying into the cutting chamber, this wet granulation process pre-treats and partially cleans the material before moving on to the next equipment.
    • Air Classifier: Air classification is a way to separate lighter materials from heavier ones. The main purpose of using the air classifier is to remove contaminations such as paper, cardboard, and plastic labels away from PET flakes.
    • Sink / float Separation Tank: Using water as a medium, materials that float are separated from materials that sink. In the case of plastic bottle recycling, PET plastic will sink while plastic film (bottle labels) and PP/PE plastic (bottle caps) will float. A screw conveyor at the bottom of the sink float separation tank moves the PET plastic to the next piece of equipment.
    • Hot Washer System: Hot-washed PET flakes are of higher value because this process dissolves glues (used to glue labels onto the bottles) and leftover beverages/foods that are difficult to remove in a cold wash process. Although you can just use water in the hot washer system, adding washing agents can be added for better results.
    • Friction Washer: A efficient piece of cold water washing equipment, the high-speed friction washer uses friction as a mechanical way to remove any hard to remove dirt and debris from the PET flakes.
    • Dewatering Machine: The first step in the drying process, our centrifugal dewatering machine uses centrifugal force to remove a large portion of water within the PET flakes before moving forward onto our thermal dryers.
    • Thermal Dryer: PET flakes are vacuumed out of the dewatering machine into the thermal dryer where it travels down a series of stainless steel tubes mixed with hot air. This process removes any remaining moisture by dehydration. An attached cyclone separator mixes the PET flakes with cool air preparing them for storage in the product silo.
    • Product Silo: A storage tank for the clean, dry PET flakes.

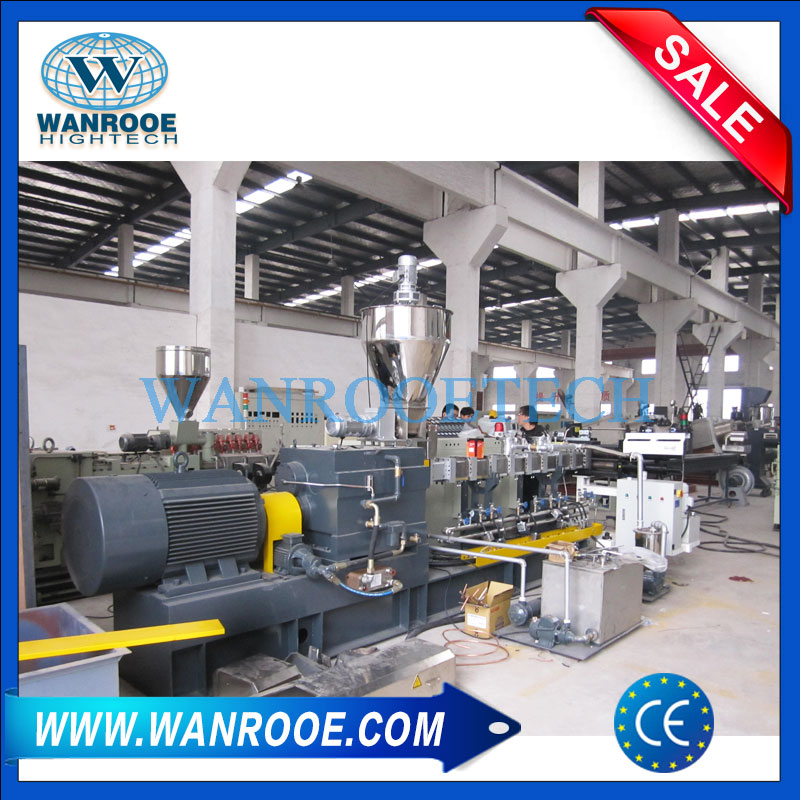

    • Pelletizer / Extruder: For the most part, PET flakes are used as is particularly in manufacturing polyester fibers. However, we do have customers requiring plastic pelletizing machines such as our single-screw extruder pelletizers and twin-screw extruder pelletizers.

PET Bottle Washing Line Plastic Bottle Recycling Machine Technical Features:
1. High automation level, try best to reduce your cost on labor(especially for three shifts)and ensure high processing capacity: 100-2000kg/hr.
2. Friendly control system(PLC integrated & separated control on each machine)and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting plastic material and water are made of high-quality 304 stainless steel; Ensuring no second pollution to flakes.
4. This China Hot Selling Waste PET Bottle Washing Machine can easily wash and recycle waste PET bottle flakes. Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
5. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
6. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles the PET granule material in order to produce new PET bottles.

Related equipment:

Leave a Reply

Your email address will not be published. Required fields are marked *

Model PNQT-300 PNQT-500 PNQT-800 PNQT-1000
Material PET PET PET PET
Install Power 100kw 150kw 200kw 280kw
Capacity 300kg/h 500kg/h 800kg/h 1000kg/h
Water Consumption 4-6litres/kg 3-6litres/kg 3-5litres/kg 2-3litres/kg
End Products Humidity <=5% <=5% <=5% <=5%
