Plastic Barrel Recycling Bucket Granulator Pelletizer Machine

Plastic Barrel Bucket Recycling Granulator Pelletizer Machine is suitable for recycling HDPE thermoplastics such as plastic bucket / small hollow bottles / milk bottles. The plastic granulating machine’s pelletizing method: strand type, water ring die cutting type, air cooling die cutting type. This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules. And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities. The first stage extruder adopts an exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination; And the second extruder usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

  • Product Description
  • Technical Parameters
  • Video

Plastic Barrel Recycling Bucket Granulator Pelletizer Machine Application :
Plastic barrel recycling bucket granulator pelletizer machine is suitable for recycling HDPE thermoplastics such as plastic buckets / small hollow bottles/milk bottles. The plastic granulating machine’s pelletizing method: strand type, water ring die-cutting type, air cooling die-cutting type.

plastic barrel recycling machine, plastic bucket recycling, plastic barrel granulator, plastic barrel pelletizer, plastic bucket pelletizer

Plastic Barrel Recycling Bucket Granulator Pelletizer Machine Description:
Plastic barrel recycling bucket granulator pelletizer machine for waste plastic recycling is used to make plastic flakes into pellets or granules.
And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

Plastic Barrel Recycling Bucket Granulator Pelletizer Machine Components:

Screw loader Force Feeder

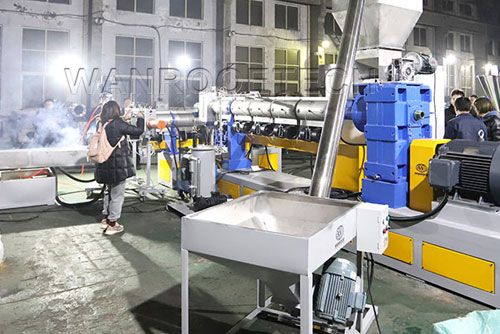

Screw loader
Use to loading flakes into dosing feeding

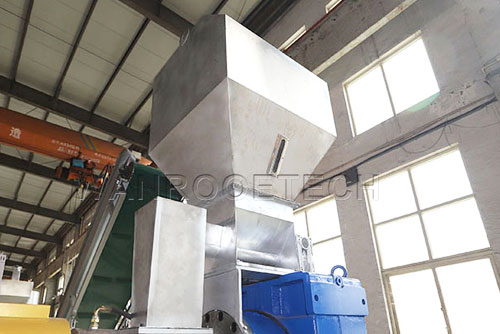

Force Feeder
Belt conveyor for plastic scrap feeding automatically, Feeding speed adjustable by inverter controller according to the feeding amount.
First Stage Screw Extruder 1# Full Auto Hydraulic Screen Changer With Double Working Position

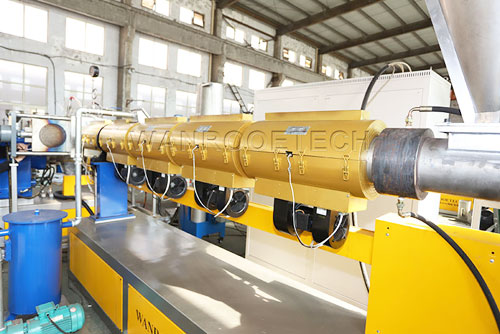

First Stage Screw Extruder
Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our extruder has great anti-corrosion resistant, wear resistant and long life time.

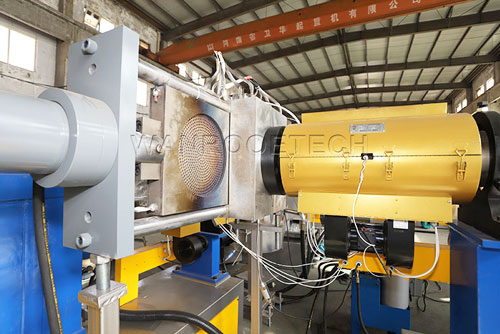

1# Full Auto Hydraulic Screen Changer With Double Working Position
Filter material impurity, to make production more stable.
Second Stage Screw Extruder 2# Full Auto Hydraulic Screen Changer With Double Working Position

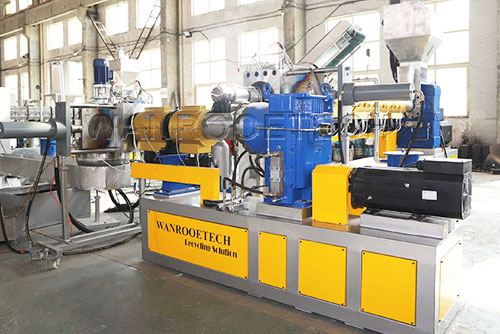

Second Stage Screw Extruder
usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

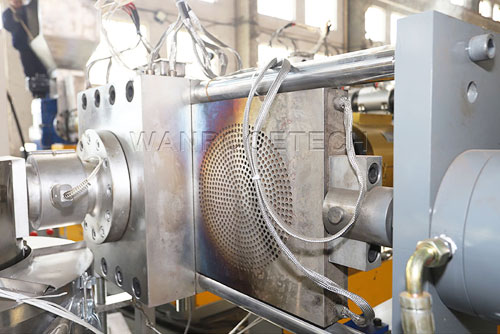

2# Full Auto Hydraulic Screen Changer With Double Working Position
Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.
Degassing Water Ring Cutting System

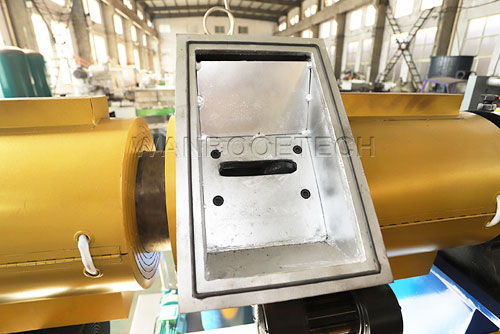

Degassing
Force vacuum degassing system to get rid of the low molecular, moisture and printing ink effectively, make sure high quality output pellets.

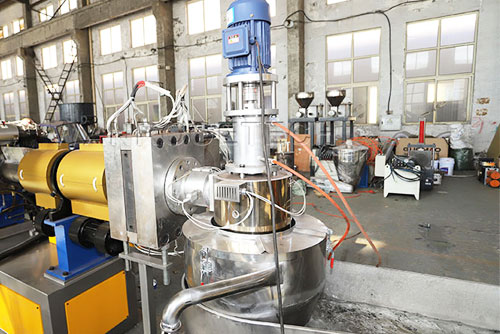

Water Ring Pelletizing System
Cutting the material into pellet. Water ring pelletizing system set as the standard granulating method. self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure.
Dewatering And Air Sending System Silo

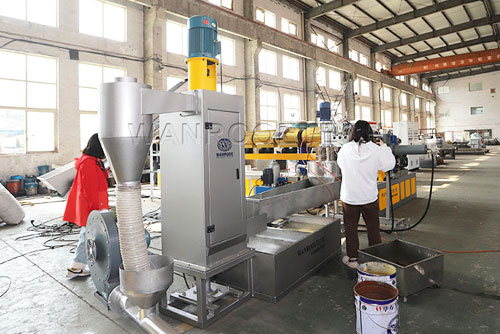

Dewatering And Air Sending System
Horizontal type centrifugal dryer to get well-dried final granules.

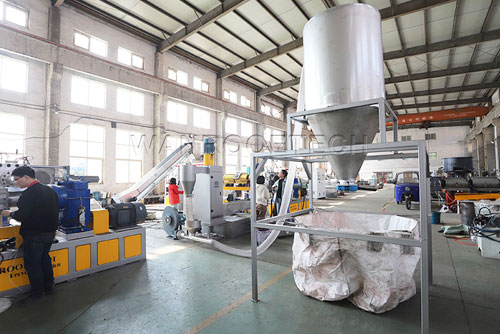

Silo
Storage the final pellets to with a bag.

Plastic Barrel Recycling Bucket Granulator Pelletizer Machine Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Plastic Barrel Recycling Bucket Granulator Pelletizer Machine Detailed description of each item:
1. Screw Feeder: convey Plastic scraps into the main machine.
3. 1# Extruding system: plasticizing material and exhausting gas.
4. 1# High-speed Net exchanging system: filter material impurity, to make production more stable.
5. 2# Extruding system: plasticizing material.
6. 2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
7. water ring pelletizing machine: cutting pellets in water.
8. Water tank: cooling pellets.
9. Dewater machine: make pellets dry.
10. Vibration sieve: remove bad pellet and keep good pellet.
11. Air Blower: convey good pellets into the silo.
12. Storage silo: keep pellet.

Plastic Barrel Recycling Bucket Granulator Pelletizer Machine Features:
1. Allow free assembling of the screw component, based on raw material type.
2. Using a suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape.

Leave a Reply

Your email address will not be published. Required fields are marked *

Model Screw Diamm L/D Capacitykg/h
PNHS-80/80 80 25-36 120-180
PNHS-100/100 100 25-36 200-250
PNHS-130/130 130 25-33 400-500
PNHS-160/160 160 25-33 450-700
PNHS-180/180 180 25-33 500-1000
