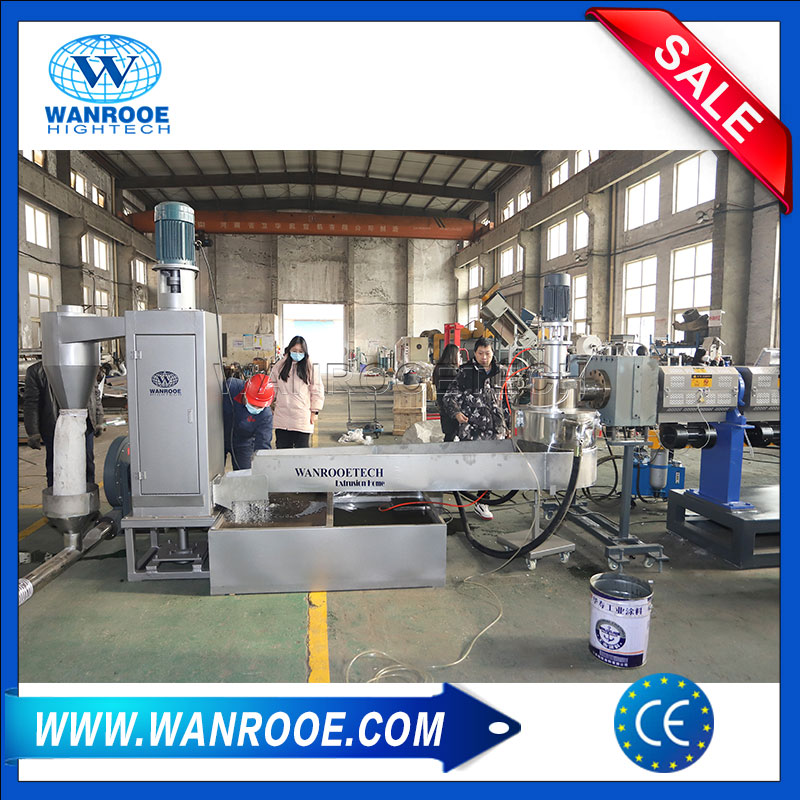

Plastic Bottle Pelletizer PP HDPE Flake Recycling Pelletizing Machine

Applications:
Applicable plastic materials: PE, HDPE, LDPE, PP, etc
Material shapes: crushed material, agglomerated material.
Material types: (rolls, loose, bundled),
Material comes from offcut, below standard film and washed film.
Note: depending on different material properties, various downstream equipment is needed.

  • Product Description
  • Technical Parameters
  • Video

Plastic Bottle Pelletizer PP HDPE Flake Recycling Pelletizing Machine Applications:
Applicable plastic materials: PE, HDPE, LDPE, PP, etc
Material shapes: crushed material, agglomerated material.
Material types: (rolls, loose, bundled),
Material comes from an offcut, below the standard film and washed film.
Note: depending on different material properties, various downstream equipment is needed.

Plastic Bottle Pelletizer PP HDPE Flake Recycling Pelletizing Machine Description:
1. Spiral charger uploading the material by timer.
2. Feeder, extruding and granulating are all controlled by inverter.
3. Different L/D for different plastics.
4. The HDPE bottle flake pelletizing line adopts natural degassing or vacuums degassing adopting for moisture.
5. Pelletizing method: water-ring die face hot cutting, pulls strand pelletizing, wind cooling rubs surface method / under-water pelletizing.

Plastic Bottle Pelletizer, Plastic Bottle Granulator, Plastic Pelletizing Machine, Plastic Flake Pelletizing Machine, HDPE Pelletizer

Plastic Bottle Pelletizer PP HDPE Flake Recycling Pelletizing Machine Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Screw loader Force Feeder
Screw loader
Use to loading flakes into dosing feeding

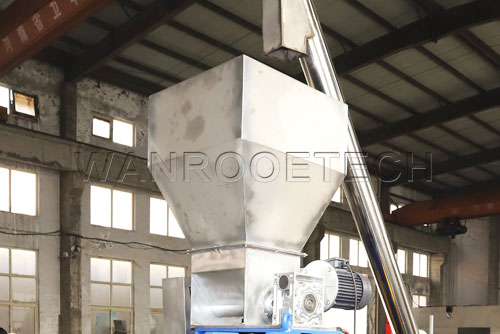

Force Feeder
Belt conveyor for plastic scrap feeding automatically, Feeding speed adjustable by inverter controller according to the feeding amount.
Single Screw Extruder Full Auto Hydraulic Screen Changer With Double Working Position

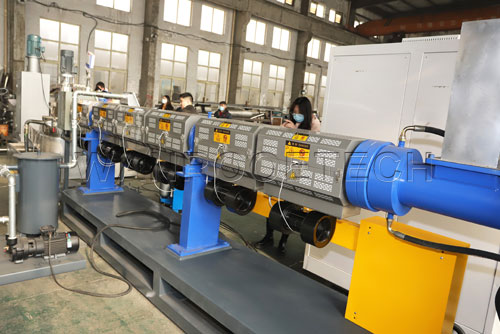

Single Screw Extruder
Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our bi-metal extruder has great anti-corrosion resistant, wear resistance and long life time.

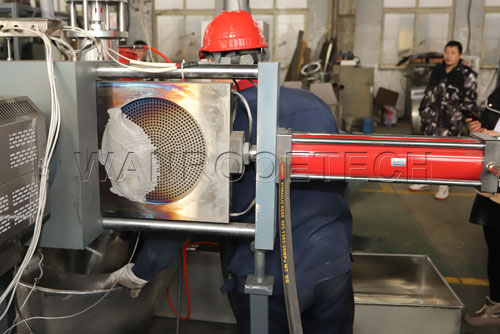

Full Auto Hydraulic Screen Changer With Double Working Position
Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.
Water Ring Cutting System Dewatering And Air Sending System
Water Ring Pelletizing System
Cutting the material into pellet. Water ring pelletizing system set as the standard granulating method. self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure.

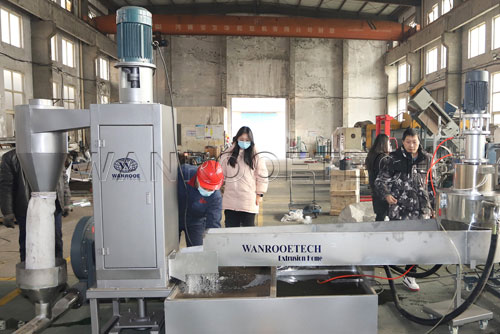

Dewatering And Air Sending System
Horizontal type centrifugal dryer to get well-dried final granules.
Plastic Pelletizer Electronic Control Silo

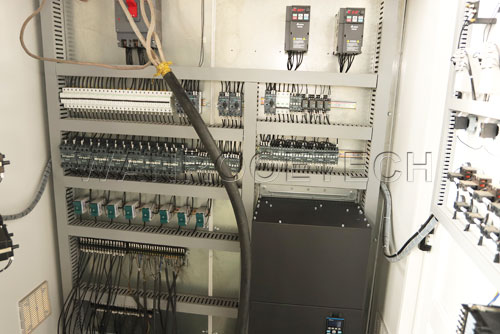

Electronic Control
The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA.

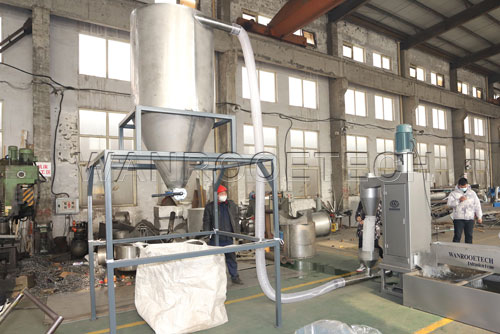

Silo
Storage the final pellets in a bag.

Plastic Bottle Pelletizer PP HDPE Flake Recycling Pelletizing Machine Advantage:
1. The HDPE bottle flake pelletizing machine has a high automation level, try your best to reduce your cost on labor and ensure high processing capacity.
2. All parts contact with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
3. Very low designated energy consumption and maintenance costs, ensure the lowest operating cost.

Leave a Reply

Your email address will not be published. Required fields are marked *

Model Screw Dia(mm) L/D Capacity(kg/h)
PNHS-65D 65 28-33 60-80
PNHS-90D 90 28-33 80-120
PNHS-100D 100 28-33 100-180
PNHS-120D 120 25-33 200-300
PNHS-150D 150 25-33 300-500
PNHS-200D 200 25-33 500-800
