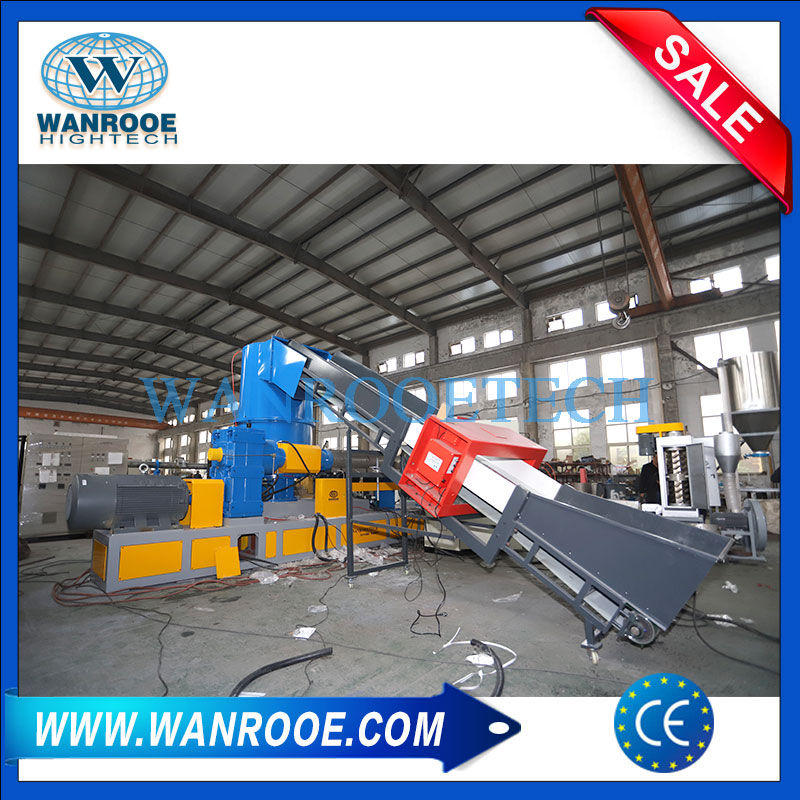

Plastic Film Pelletizer Granulator Machine For Recycling PE CPP BOPP LDPE HDPE LLDPE

PP PE Plastic Film Pelletizing Line Benefits:
Uniform polymer flow to die plate
Lower inlet pressure = increased rates
Rapid blade and die plate removal
Fast color changes
Easy clean-out
Simple start-up and operation
Improved pellet dryness
Easy dryer access and clean ability
Insensitive to process variations

  • Product Description
  • Technical Parameters
  • Video

Plastic Film Pelletizer Granulator Machine Applications:
Applicable plastic materials: PE, HDPE, LDPE, PP, CPP, LLDPE, BOPP, PET, PA/Nylon, etc
Material shapes: film, bag, fiber, rope scrap
Material types: rolls, loose, bundled
The material comes from offcut, industry defective materials, washed materials and printed materials.
Note: depending on different material properties, various downstream equipment is needed.

Film Pelletizer, Film Granulator, Waste Plastic Recycling Machine, Plastic Granulator, CPP Pelletizer, BOPP Pelletizer

Plastic Film Pelletizer Granulator Machine Description:
Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

Plastic Film Pelletizer Granulator Machine Process flow:
BOPP film→belt conveyor→metal detector→film compactor→mother extruder →hydraulic screen changer →baby extruder→hydraulic screen changer →pelletizing system →air dryer blowing system→ storage hopper→ finished product packing

Plastic Film Pelletizer Granulator Machine Components:

Conveyor (with metal detector) Agglomerator
Conveyor (with metal detector)
Metal detectors can be combined with belt conveyors, and can interlock with the control system, to warn and stop the system, in case that metal is found in feeding.
Agglomerator
Agglomerator combines pre-heating, pre-dry and size reduction to ensure a fast and stable feeding process.
First Stage Screw Extruder 1# Full Auto Hydraulic Screen Changer With Double Working Position
First Stage Screw Extruder
Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our extruder has great anti-corrosion resistant, wear resistant and long life time.
1# Full Auto Hydraulic Screen Changer With Double Working Position
Filter material impurity, to make production more stable.
Second Stage Screw Extruder 2# Full Auto Hydraulic Screen Changer With Double Working Position
Second Stage Screw Extruder
usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
2# Full Auto Hydraulic Screen Changer With Double Working Position
Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.
Water Ring Cutting System Dewatering And Air Sending System
Water Ring Pelletizing System
Cutting the material into pellet. Water ring pelletizing system set as the standard granulating method. self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure.
Dewatering And Air Sending System
Centrifugal dryer to get well-dried final granules.
Silo Plastic Pelletizer Electronic Control
Silo
Storage the final pellets in a bag.
Electronic Control
The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA.

Detailed description of each item:
1. Conveyor: convey PP PE film or flakes into the compactor.
2. PE film Agglomerator /Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable.
3. 1# Extruding system: plasticizing material and exhausting gas.
4. 1# High speed Net exchanging system: filter material impurity, to make production more stable.
5. 2# Extruding system: plasticizing material.
6. 2# High speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
7. water ring pelletizing machine: cutting pellets in water.
8. Water tank: cooling pellets.
9. Dewater machine: make pellets dry.
10. Vibration sieve: remove bad pellet and keep good pellet.
11. Air Blower: convey good pellets into the silo.
12: Storage silo: keep pellet.

Plastic Film Pelletizer Granulator Machine Features :
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Plastic film pelletizer pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape.

Leave a Reply

Your email address will not be published. Required fields are marked *

Plastic Pelletizing Machine, Plastic Pelletizer For Sale, Plastic Film Pelletizing Machine, Plastic Pelletizing Recycling Machine

Model Production(kg/hr) Screw Diameter(mm) Main motor(KW)
PNHS-80 80-150 80 55
PNHS-100 200-250 100 90
PNHS-120 400-450 120 132
PNHS-150 450-500 150 160
PNHS-160 450-600 160 200
