• screw press dryer, film press dryer, woven bag squeezing dewatering, plastic squeezing dewatering

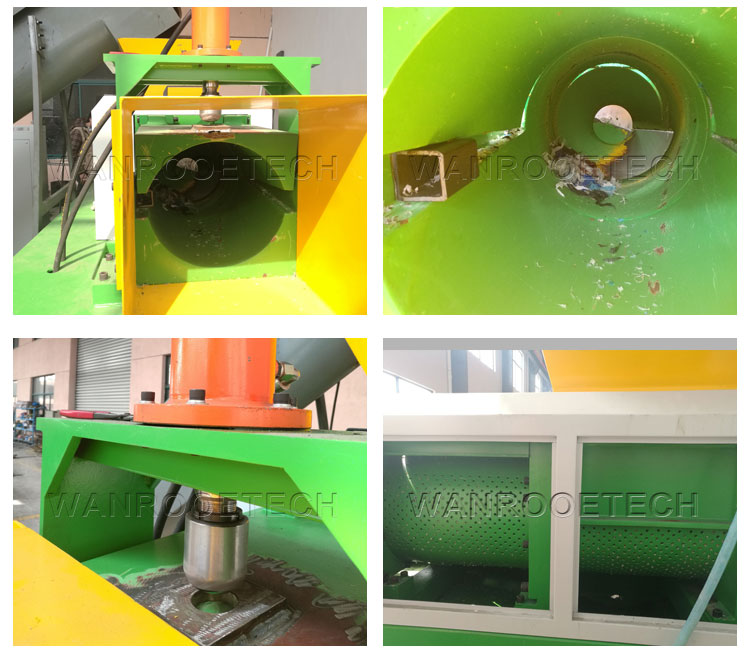

Wet Film Woven Bag Screw Press Dryer Squeezing Dewatering Machine

Plastic squeeze dryers are a vital part of plastic film washing lines. Washed films retain up to 30% wetness normally. High humidity will be affecting the efficiency and production of the following pelletizing process. Having a plastic squeeze dryer is a must to dehydrate the washed film, reduce the volume of recycled materials, and further refine the essence of final plastic pellets.

  • Product Description
  • Technical Parameters
  • Video

Plastic Screw Press Dryer Squeezing Dewatering Machine Application Materials:
Even the water-washed plastic film via procedures of the spin-dryer still contains over 10% moisture whose material would reduce the productivity of the extruder and quality of pellets. The latest development for recycling film: plastic film squeeze dryers which could make moisture to the minimum and the squeezed material only contains 3% moisture below.

Plastic Screw Press Dryer Squeezing Dewatering Machine Description:
Plastic screw press dryer squeezing dewatering machine are a vital part of plastic film washing lines. Washed films retain up to 30% wetness normally. High humidity will be affecting the efficiency and production of the following pelletizing process. Having a plastic squeeze dryer is a must to dehydrate the washed film, reduce the volume of recycled materials, and further refine the essence of final plastic pellets.

Plastic Screw Press Dryer Squeezing Dewatering Machine Working process:
By plastic film screw press dryer squeezing dewatering machine, the washed film can be squeezed to dehydrate water of films or fluffy stuff. The film is squeezed to become flakes or blocks. The film plastic moisture will be lowered down to 1-3%.

Plastic Screw Press Dryer Squeezing Dewatering Machine Features:
Lower moisture, higher capacity
Plastic squeeze dryers are a vital part of plastic film washing lines.
Washed films retain up to 30% wetness normally. High humidity will be affecting the efficiency and production of the following pelletizing process. Having a plastic squeeze dryer is a must to dehydrate the washed film, reduce the volume of recycled materials, and further refine the essence of final plastic pellets.

Plastic Squeezing Dryer, Plastic film Squeezing Drying Machine, Squeezing Drying Machine, Plastic Squeezing Dewatering Machine

Leave a Reply

Your email address will not be published. Required fields are marked *

Model PNSD-300 PNSD-400
Dimension 2450 x 800 x 1800mm 2450x800x1900mm
Inlet Size 700 x 670mm 800x760mm
Motor Power 18.5kw 22kw
Rotated Speed 30r/min 30r/min
Capacity 500kg/h 800-1000kg/h
Screw Diameter 300mm 380mm
Screw Length 1447mm 1550mm
Drainage Method Drain at the bottom Drain at the bottom
Material Outlet Free falling Free falling
Hydraulic Station Motor 1.5kw 2.2kw

Video
