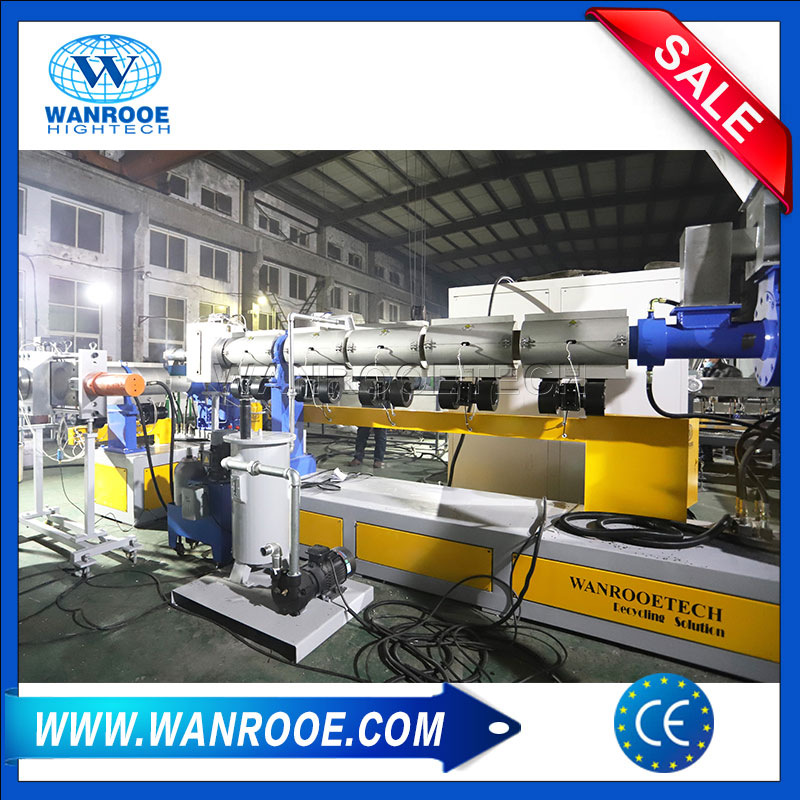

Plastic Film Bag Recycling Pelletizer Machine

The squeezed material from squeezer machine in the squeezed material plastic granulating line will be fed into the raw material silo storage by air feeding. Then the squeezed material will be fed to granulating line automatically.
Advantages:
1. Squeezed material granulating machine automation, labor saving.
2. There is no requirement for the shape of the squeezed material.
3. High output and low energy consumption.

  • Product Description
  • Technical Parameters
  • Video

Plastic Film Bag Recycling Pelletizer Machine Application Materials:
Plastic granulator pelletizer machine is suited for PET, PP, OPP, BOPP, HDPE, LDPE, LLDPE, ABS, HIPS, etc. Especially for plastic films, foam, woven, raffia, wash & squeezed films, flakes, materials with water content, and post-consumer waste materials.

Plastic Film Bag Recycling Pelletizer Machine Description:
The squeezed plastic film woven bag material from the squeezer machine in the squeezed material plastic granulating line will be fed into the raw material silo storage by air feeding. Then the squeezed material will be fed to granulating line automatically.

Plastic Film Bag Recycling Pelletizer Machine Advantages:
1. Squeezed material granulating machine automation, labor-saving.
2. There is no requirement for the shape of the squeezed material.
3. High output and low energy consumption.

Plastic Film Bag Recycling Pelletizer Machine Work Process:
Feed film on the Belt conveyor machine and go into Compactor for cutting, heating, compacting and mixing, then enter the extruder for extruding.
Feed regrind material through the Spiral charger and Feeder on the extruder.
Instruction: the film and regrind material can be recycled separately or together, depending on customers’ different needs.

Plastic Film Bag Recycling Pelletizer Machine Components:

Screw loader Force Feeder
Screw loader
Use to loading flakes into dosing feeding
Force Feeder
Belt conveyor for plastic scrap feeding automatically, Feeding speed adjustable by inverter controller according to the feeding amount.
First Stage Screw Extruder 1# Full Auto Hydraulic Screen Changer With Double Working Position
First Stage Screw Extruder
Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our extruder has great anti-corrosion resistant, wear resistant and long life time.
1# Full Auto Hydraulic Screen Changer With Double Working Position
Filter material impurity, to make production more stable.
Second Stage Screw Extruder 2# Full Auto Hydraulic Screen Changer With Double Working Position
Second Stage Screw Extruder
usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
2# Full Auto Hydraulic Screen Changer With Double Working Position
Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.
Degassing Water Ring Cutting System
Degassing
Force vacuum degassing system to get rid of the low molecular, moisture and printing ink effectively, make sure high quality output pellets.
Water Ring Pelletizing System
Cutting the material into pellet. Water ring pelletizing system set as the standard granulating method. self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure.
Dewatering And Air Sending System Silo
Dewatering And Air Sending System
Horizontal type centrifugal dryer to get well-dried final granules.
Silo
Storage the final pellets to with a bag.

Plastic Film Bag Recycling Pelletizer Machine Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Detailed description of each item:
1. Screw Feeder: convey Plastic scraps into the main machine.
3. 1# Extruding system: plasticizing material and exhausting gas.
4. 1# High speed Net exchanging system: filter material impurity, to make production more stable.
5. 2# Extruding system: plasticizing material.
6. 2# High speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
7. water ring pelletizing machine: cutting pellets in water.
8. Water tank: cooling pellets.
9. Dewater machine: make pellets dry.
10. Vibration sieve: remove bad pellet and keep good pellet.
11. Air Blower: convey good pellets into the silo.
12. Storage silo: keep pellet.

Leave a Reply

Your email address will not be published. Required fields are marked *

Model Screw Diamm L/D Capacitykg/h
PNHS-80/80 80 25-36 120-180
PNHS-100/100 100 25-36 200-250
PNHS-130/130 130 25-33 400-500
PNHS-160/160 160 25-33 450-700
PNHS-180/180 180 25-33 500-1000
