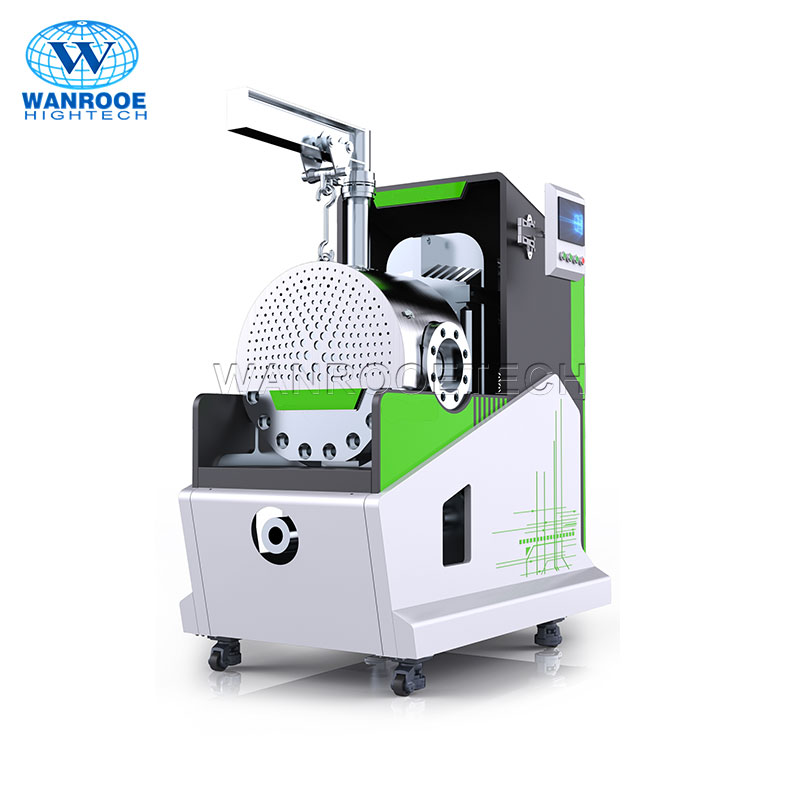

Double Mesh Board Self-cleaning Filter

It can effectively intercept and remove all kinds of impurities in the fluid, including solid particles, fibers, gels, etc., to ensure that the filtered fluid reaches a high degree of purity. And it has an automatic cleaning function, when the impurities on the filter surface accumulate to a certain level, it will automatically start the cleaning program, without the need for frequent manual disassembly and cleaning of the filter.

Category: Screen Changer,Products

Previous: Screen Changer Filter

Next: Plastic Laser Filter

Product Description
Technical Parameters
Video

Description

The latest version of this self-cleaning filter is: the all-in-one machine structure does not require wiring, and the electrical components are supplied by the world’s highest end suppliers. Siemens PLC controls the German machine head pressure sensor, which can self clean Dynamically control the fluctuation of solution pressure to adjust the speed of the scraper, ensuring that there is no garbage and the scraper does not rotate. Additionally, it can control the slag discharge effect and continuously rotate to ensure the longevity of the mesh and scraper reaching the optimal service life greatly reduces the cost of the enterprise.

Technical Parameters

Items	diameter	mesh size	suitable extruder	suitable plastic	output per hour	motor power	required head pressure	total power
DF 400	⌀400 mm	40,50,60,80,100	⌀180-200	PET,PP,PE,PS,PA	400-600 kg	3.0 kw	8 MPa for 40 mesh 12 MPa for 60 mesh 15 MPa for 80 mesh 18 MPa for 100 mesh	18 kw
DF 500	⌀500 mm	40,50,60,80,100	⌀200-220	PET,PP,PE,PS,PA	700-1500 kg	5.5 kw		20 kw
DF 600	⌀600 mm	40,50,60,80,100	⌀220-280	PET,PP,PE,PS,PA	1500-2500 kg	5.5 kw		30 kw

advantages

1.Cleaning and Maintenance:

It has an automatic cleaning function, eliminating the need for manual and frequent cleaning of the filter screen, reducing labor costs and maintenance time. The double-screen design and self-cleaning mechanism prevent blockages, ensuring stable and continuous filtration.

2.Filtration Performance:

It adopts advanced technology and high-quality filter screens to efficiently remove impurities and ensure the purity of the fluid. The filter screen pore size can be selected according to needs to meet various precision requirements.

3.Operation Cost:

It has low energy consumption during operation. The automatic cleaning of the filter screen reduces the replacement frequency, saving procurement and inventory costs.

4.Equipment Performance:

It has a compact structure, occupies a small area, and is convenient for installation and maintenance. It is applicable to the filtration of various fluids in multiple industries and can be customized. The high-quality design and automatic cleaning function extend the service life of the equipment.

5.Automation Level:

It is equipped with intelligent control, which can automatically detect blockages, start cleaning and sewage discharge operations, and achieve unattended operation. It can be connected to the monitoring system to monitor operation parameters in real-time, making it easy to keep track of the equipment’s condition.
